Battery Monitoring and Balancing Gateways
The WF 522x series of Gateways are designed to interface WireFlow WF 5218 Battery Monitoring and Balancing Nodes with a higher‑level control system such as a PC, PLC or industrial controller.

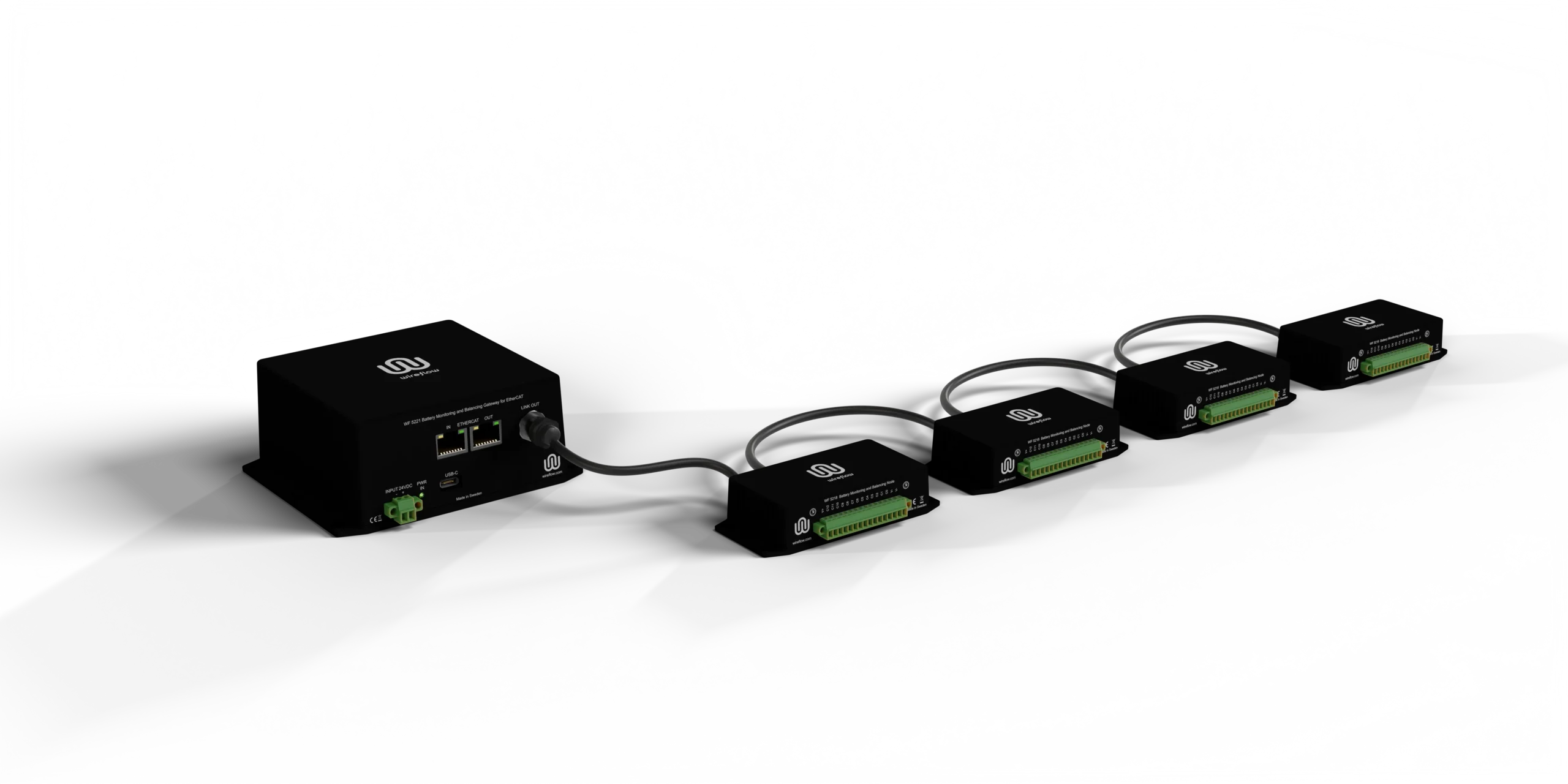

The gateways handle data acquisition, control, and communication for up to 16 WF 5218 nodes connected in a daisy‑chain topology. This enables safe, accurate and scalable monitoring and passive balancing of large series‑connected battery stacks.
Two gateway variants are available; the WF 5220 with USB communication and the WF 5221 with EtherCAT communication for industrial control systems. Both gateways support open and well‑established communication standards, enabling straightforward integration into customer‑specific software environments.
Features
- Supports up to 16 WF 5218 battery monitoring nodes
- Scalable architecture for monitoring large battery stacks
- Compatible with battery systems up to 1600 VDC
- Open communication interfaces for easy software integration
- Configuration and setup via PC using WireFlow configuration software
- Control of cell measurement modes and passive balancing
- High system safety with defined insulation barriers
- DIN‑rail mounting support via accessory

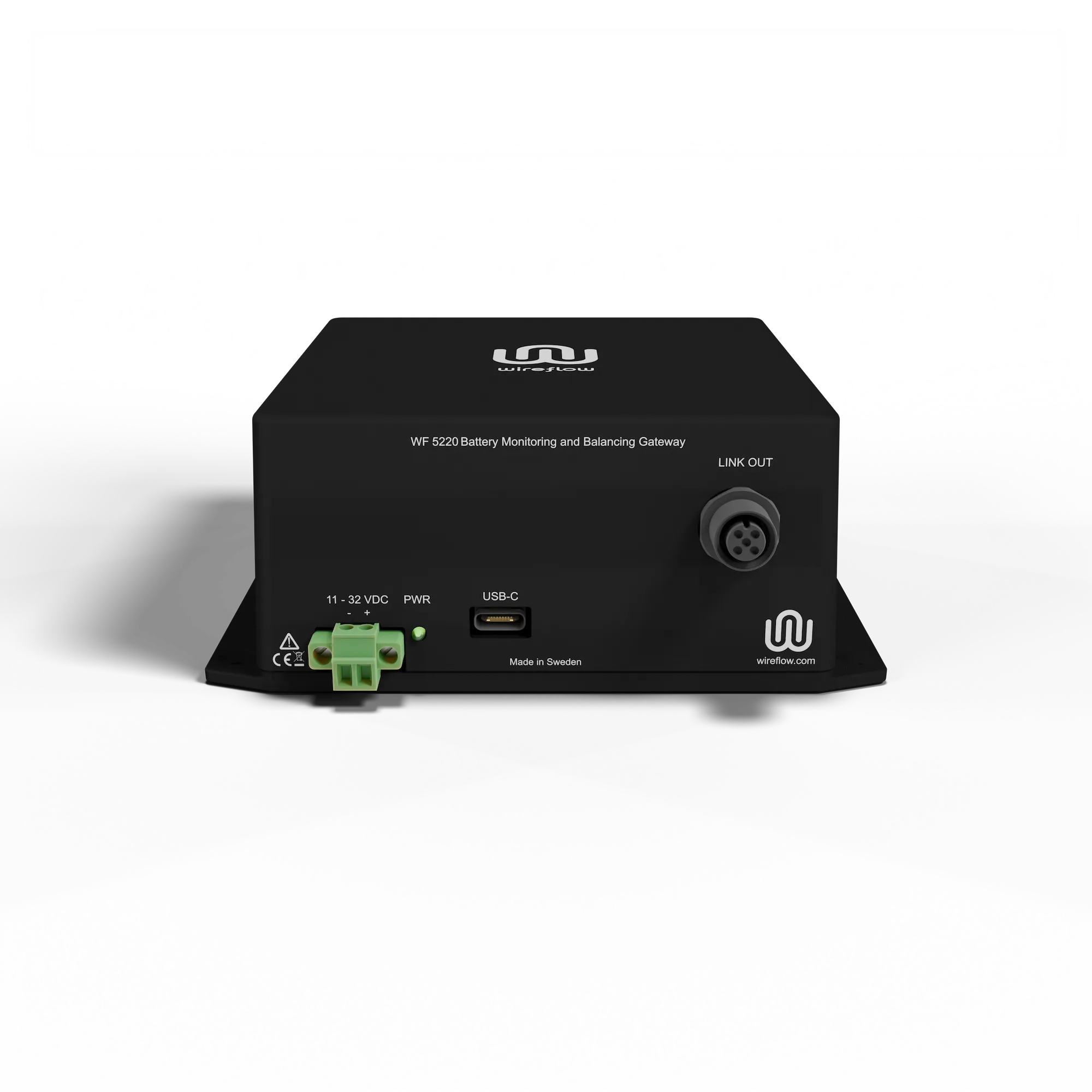

WF 5220 Gateway for USB specific features
- USB communication
- Modbus RTU based open API
- Compatible with C, Python, C#, LabVIEW, and other environments

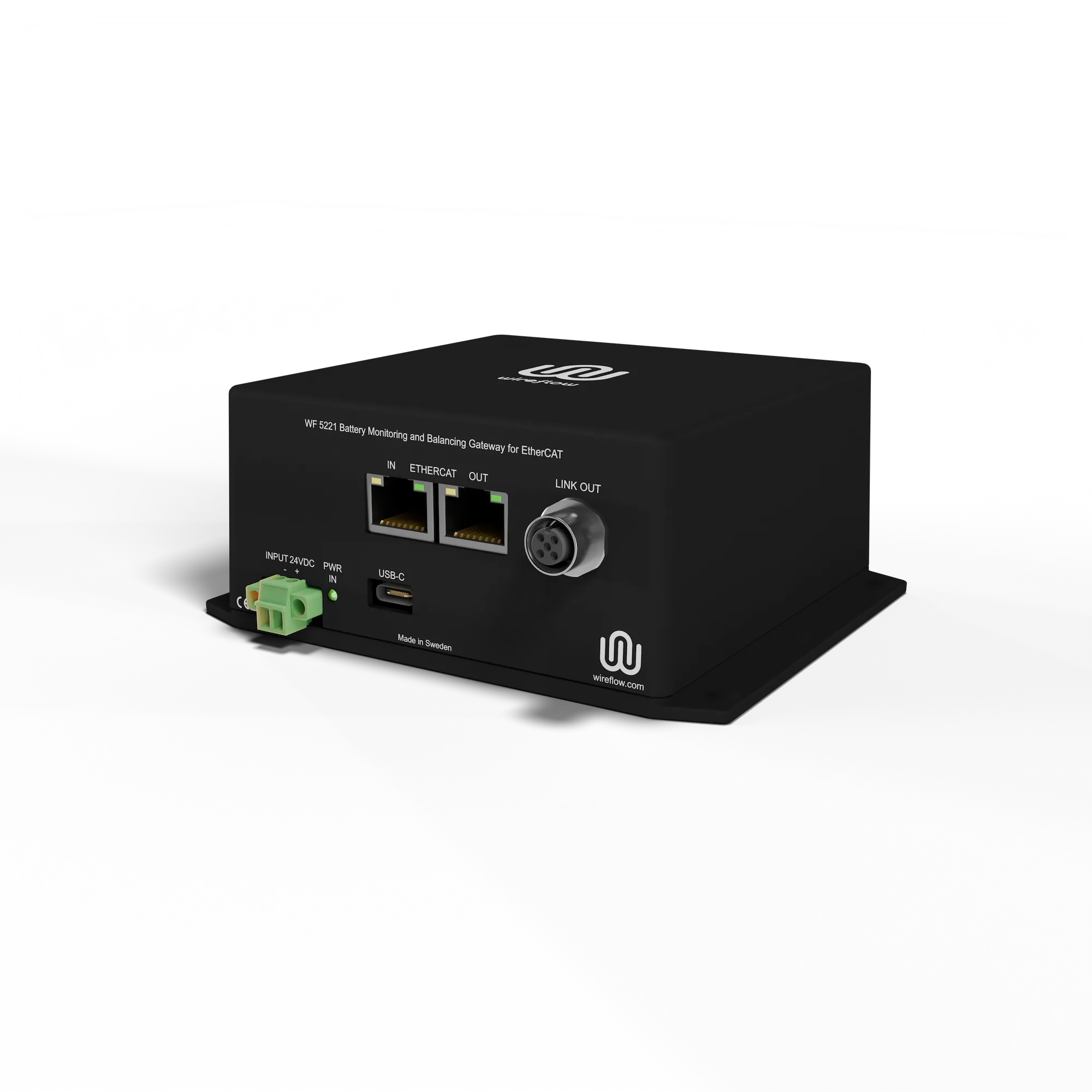

WF 5221 Gateway for EtherCAT specific features
- EtherCAT slave interface
- Suitable for PLC‑based and industrial automation systems
Price range: $ 1,280.00 through $ 2,160.00
Related Products
-
WF 3168 – Battery Stack Monitor and Balancing Module
$ 2,370.00 -
DIN Rail Adapters
Price range: $ 45.00 through $ 76.00 -
Battery Monitoring and Balancing Gateways
Price range: $ 1,280.00 through $ 2,160.00 -
WF 5218 Battery Monitoring and Balancing Node
$ 540.00 -
M12 cables
Price range: $ 42.00 through $ 45.00 -
M12 connectors
Price range: $ 15.00 through $ 18.00
Quote request for Battery Monitoring and Balancing Gateways
Downloads & Information
Downloads
Data sheet
AB0005-146 WF 522x Battery Monitoring and Balancing Gateways.pdf
User manual
AC0282-004 Battery Monitoring and Balancing System – User Manual.pdf
Configuration Tool
AC0279-003 WF522x Configuration Tool
Instrument Panel for WF 5220
AC0307-003 WF5220 Instrument Panel
LabVIEW Driver for WF 5220
AC0280-003 WF5220 VIPM
Application areas
– R&D battery testing and validation
– Laboratory battery characterization
– Battery module and pack prototyping
– Energy storage systems (ESS)
– EV battery service and diagnostics
– Second‑life battery evaluation
– Battery state‑of‑health (SoH) and state‑of‑charge (SoC) studies
– Industrial automation and test systems
Specifications
Communication interfaces
– Gateway ↔ Host, WF 5220: USB – WF 5221: EtherCAT
– Gateway ↔ Nodes, Link (M12 cable, 4-pin)
– Number of WF 5218 nodes, 1-16 (1-192 battery cells)
System performance
– ADC modes, Filtered / Normal / Fast
– Max sampling rate with 1 node, WF 5220: 66Hz – WF 5221: 66Hz
– Max sampling rate with 16 nodes, WF 5220: 13Hz – WF 5221: 40Hz
Power supply
– Voltage (DC input / USB port), 11-32 V (DC input) / 5V (USB port)
– Rated power DC input, WF 5220: 0.77W – WF 5221: 1.7W
– Rated power USB port, WF 5220: 0.61W – WF 5221: 1.4W
Environmental
– Operating temperature, -20°C to 60°C
– Storage temperature, -20°C to 80°C
– Indoor / Outdoor, Indoor use only
Mechanical
– Size (w x d x h), 147.36 x 123.50 x 59.90 mm
– Weight, WF 5220: 326 g – WF 5221: 375 g
Features
– Supports up to 16 WF 5218 battery monitoring nodes
– Scalable architecture for monitoring large battery stacks
– Compatible with battery systems up to 1600 VDC
– Open communication interfaces for easy software integration
– Configuration and setup via PC using WireFlow configuration software
– Control of cell measurement modes and passive balancing
– High system safety with defined insulation barriers
– DIN‑rail mounting support via accessory
WF 5220 specific features
– USB communication
– Modbus RTU based open API
– Compatible with C, Python, C#, LabVIEW, and other environments
WF 5221 specific features
– EtherCAT slave interface
– Suitable for PLC‑based and industrial automation systems
Shipping information
WF 5220 Battery Monitoring and Balancing Gateway
– Product Net Weight: 0.33 kg
– Country of Origin: Sweden (SE)
– Harmonized System (HS) Code: 903290
– Combined Nomenclature (CN) Code: 903290.00
– TARIC Code: 903290.00.90
WF 5221 Battery Monitoring and Balancing Gateway for EtherCAT
– Product Net Weight: 0.38 kg
– Country of Origin: Sweden (SE)
– Harmonized System (HS) Code: 903290
– Combined Nomenclature (CN) Code: 903290.00
– TARIC Code: 903290.00.90
